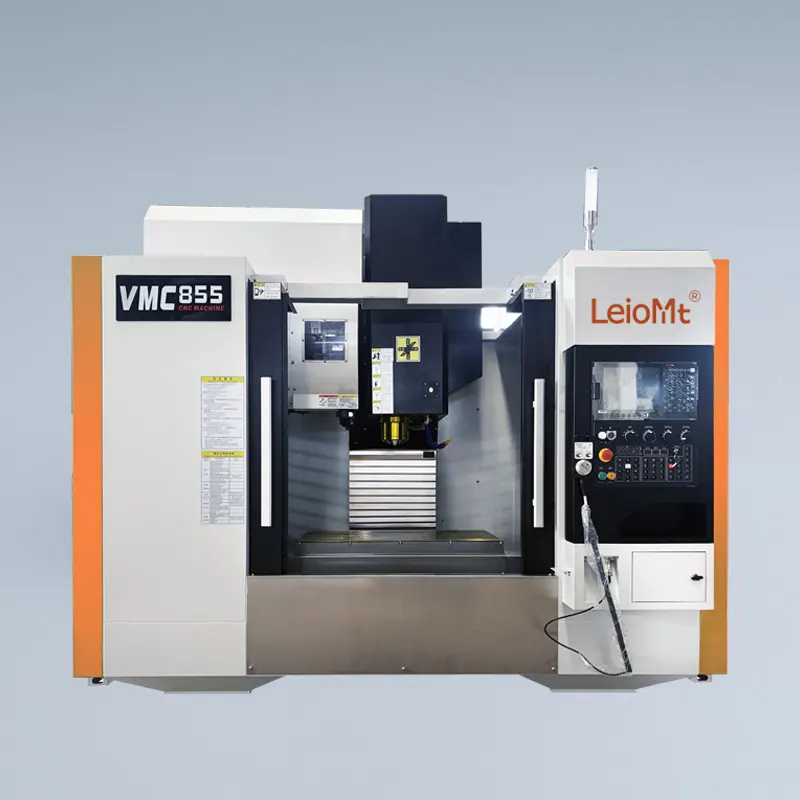

VWC855 CNC Machine

VWC855 CNC Machine

Shandong Leiou Machine Tool Co., Ltd. specializes in CNC lathes, inclined CNC lathes, vertical CNC lathes, turning milling composite, and machining centers



       Item Model

       Unit

       VMC855

       Table size

       mm

       1000×550

       Load-bearing capacity

       kg

       550

       T-Slot

       mm

       5-18×100

       Maximum Left/Right Travel (X-axis)

       mm

       820(800)

       Maximum Front/Back Travel (Y-axis)

       mm

       580(550)

       Maximum Vertical Travel (Z-axis)

       mm

       580(550)

       Maximum Distance from Spindle End Face to Table Surface

       mm

       670

       Minimum Distance from Spindle End Face to Table Surface

       mm

       120

       Distance from Spindle Center to Z-Axis Guide Surface

       mm

       590

       Tool Magazine Type


       Disc

       Tool Magazine Capacity

       Pcs

       24

       Tool Change Time

       s

       2.5

       Maximum Tool Diameter

       mm

       Φ78

       Maximum Tool Length

       mm

       120

       Maximum Tool Weight

       kg

       8

       Taper Hole (7:24)


       BT40-150

       RPM Range

       r/min

       8000/10000/12000

       Spindle Rated power/peak

       kw

       11

       Feed Rate

       mm/min

       1-10000

       X/Y/Z Axis accuracy

       mm

       ±0.008/300

       X/Y/Z Axis Repeatability

       mm

       ±0.005/300

       Machine size(L*W*H)

       mm

       2800×2400×2650

       Machine weight

       kg

       5500
