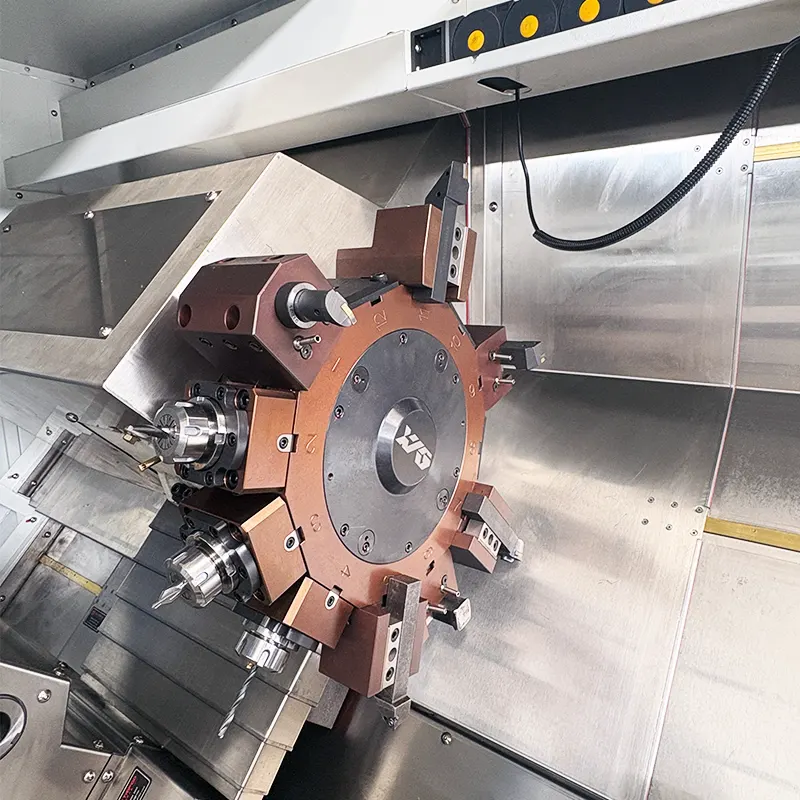

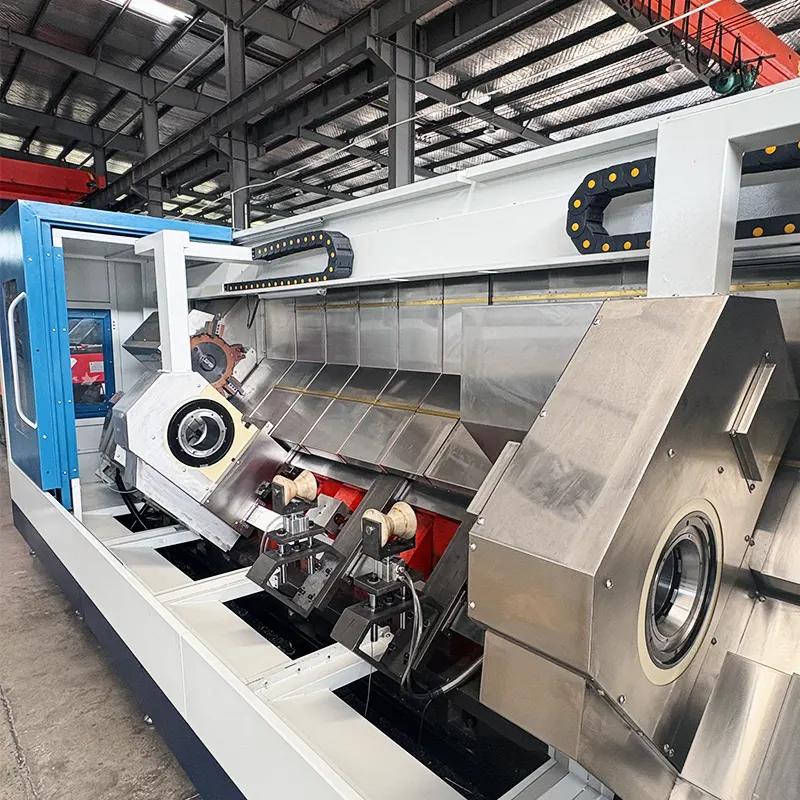

This series of CNC double head lathes is an efficient and high-precision new type of machining equipment, mainlyl used for mass production and processing of long axis and pipe parts. The work piece can be clamped in one go to complete turning and milling at both ends at the same time.High quality re
| Name | Unit | STCK160-3500 |
| Processing length range | mm | 800-3500 |
| X/X1 axis travel range | mm | 260 |
| Z/Z1 axis travel range | mm | 1500 |
| X/X1/Z/Z1 axis Flash speed | mm | 10000 |
| Main motor power | kw | 7.5/11/15kw |
| double end face coaxiality | mm | ≤0.015 |
| surface roughness | ra | 1.6-3.2 |
| positioning accuracy | mm | ±0.005 |
| repeated positioning accuracy | mm | ±0.003 |
This series of CNC double head lathes is an efficient and high-precision new type of machining equipment, mainlyl used for mass production and processing of long axis and pipe parts. The work piece can be clamped in one go to complete turning and milling at both ends at the same time.
High quality resin sand castings, box structure, strong seismic resistance, after secondary aging treatment, remove internal stress and reduce deformation; Adopting advanced three-dimen-sional finite element analysis to ensure the stability and reliability of the body.
