1/. Product instruction and applications:Machine tool feed axes include six-axis coordinate control for X/Y/Z and X1/Y1/Z1, driven by servo motors. This enables one-time clamping of various shaft-type parts while simultaneously completing machining processes such as milling, drilling, and tapping on
| Item Model | Unit | SJCNC-2000 |
| radial runout of spindle cone hole | mm | 0.008 |
| Z-axis column verticality | mm | 0.02/300 |
| Z1 axis column verticality | mm | 0.02/300 |
| X1/Y1 Verticality of the track | mm | 0.02/300 |
| X/YVerticality of the track | mm | 0.01/300 |
| parallelism of left and right spindle running paths | mm | 0.02/300 |
| repeated positioning accuracy | mm | ±0.005 |
| Workpiece length range | mm | 800-2000 |
| Clamping diameter range | mm | 80-200 |
| X and X1 Each trip | mm | 700 |
| Y and Y1 each trip | mm | 600 |
| Z and Z1 each trip | mm | 500 |
| spindle power | kw | 11kw |
| servo power | kw | 2.4*6 |
| power of pumping station | kw | 1.5kw |
1/. Product instruction and applications:
Machine tool feed axes include six-axis coordinate control for X/Y/Z and X1/Y1/Z1, driven by servo motors. This enables one-time clamping of various shaft-type parts while simultaneously completing machining processes such as milling, drilling, and tapping on both end faces. It offers high precision and high production efficiency, making it suitable for batch production of shaft-type components.

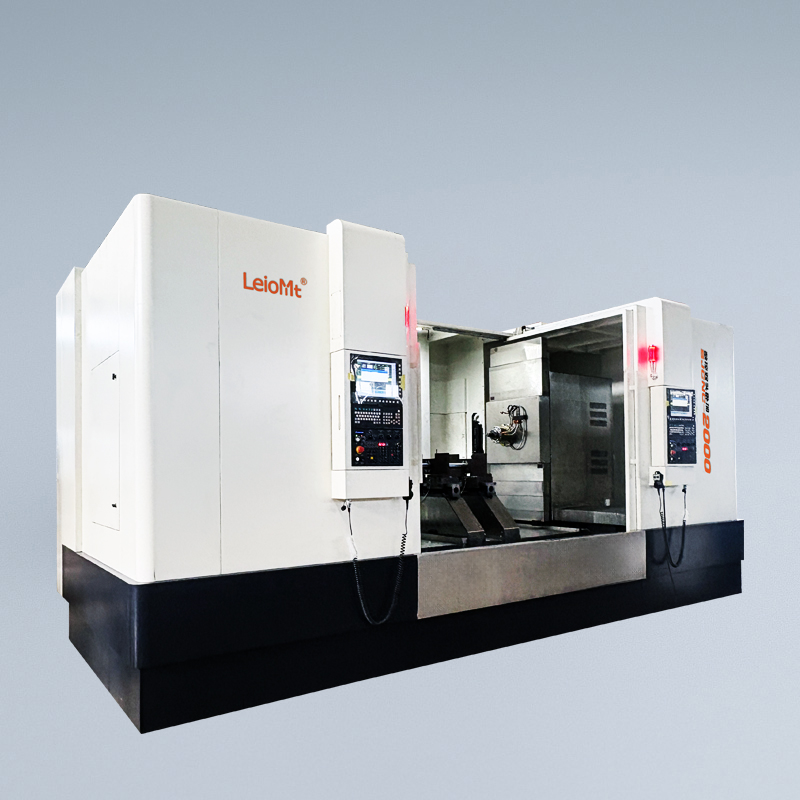

2/. Machine Layout and Motion Description

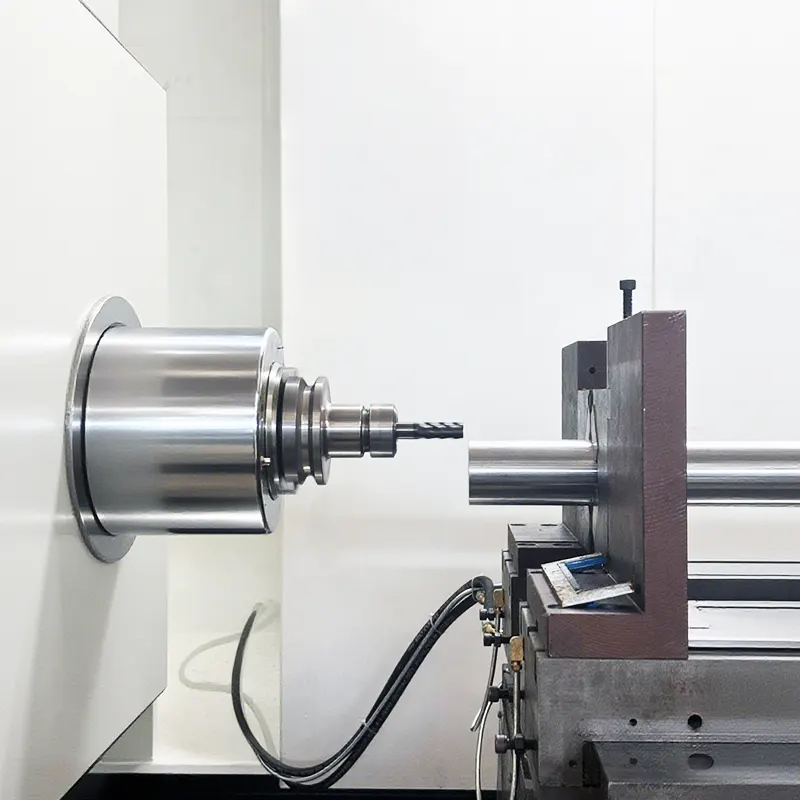

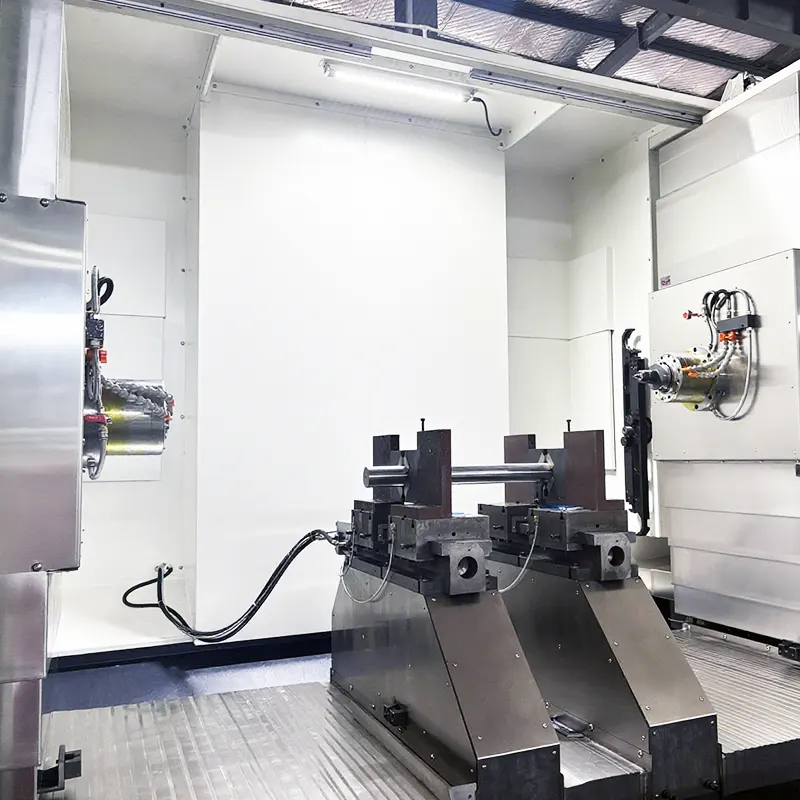

Layout: This machine adopts a horizontal six-axis (dual horizontal spindle) layout, utilizing six CNC sliding units to complete machining operations such as milling, drilling, and tapping on both end faces. The control unit employs two CNC systems to manage the X/Y/Z and X1/Y1/Z1 axes. Each of the left and right cross slides is equipped with a horizontally oriented spindle unit capable of vertical movement. Spindle speed is adjusted via CNC programming to perform face milling, drilling, tapping, and other processes. Workpiece clamping and unclamping are hydraulically controlled. Workpieces are manually loaded and unloaded, hydraulically clamped, and processed automatically.
