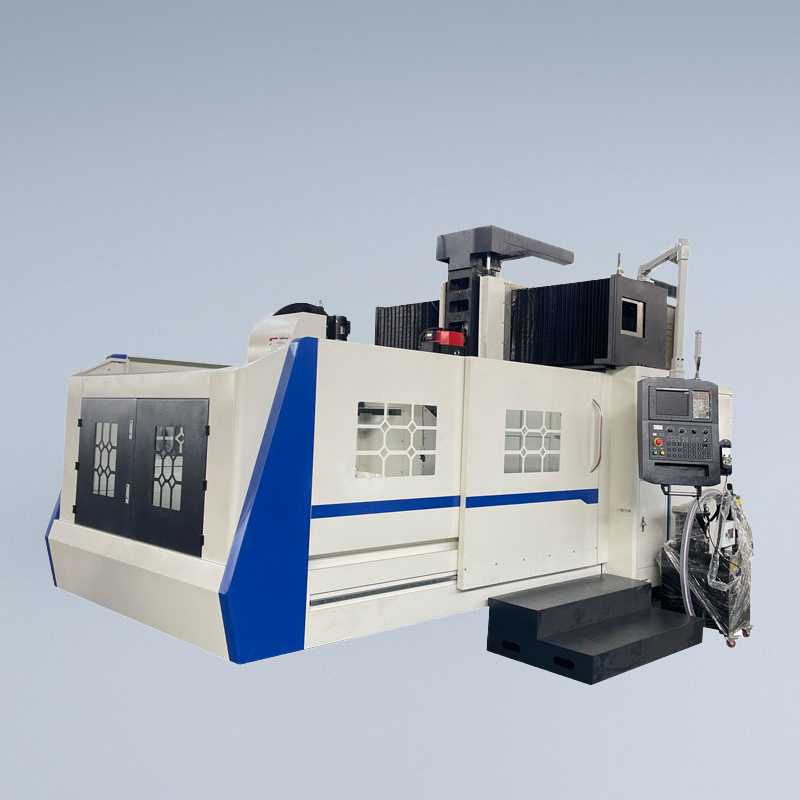

Product Instruction:The Gantry Machining Center 2518 is a large-scale CNC machine tool widely used in automotive, mold manufacturing, aerospace, hardware, and other fields. It offers versatile machining capabilities such as milling, boring, drilling, and tapping, making it suitable for medium to lar
| GM2518 | specifications |
| Workbench specifications (length × width) | 2600mm*1500mm |
| Maximum workbench load | 5500 kg |
| X coordinate trajectory | 2500 mm |
| Y coordinate trajectory | 2000 mm |
| Z coordinate trajectory | 900mm |
| Maximum width between two columns | 1800 mm |
| Distance from spindle end face to worktable | 150mm-1050mm |
| X、Y、 Zcutting speed | 1～6000 mm/min |
| X、Y、Z fast feed speed | 18/18/12 m/min |
| range of spindle speeds | 50～6000 r/min |
| taper hole of spindle | BT50-190mm |
| spindle servo motor | 18.5KW |
| X-axis servo motor power | Βis40/2000 |
| Y-axis servo motor power | Βis30/20000 (straight axle) |
| Z servo motor power | Βis30/2000 (straight axle with brake) |
| Workbench T-slot (number of slots × slot width × slot spacing) | 7×22×200mm |
| positioning accuracy | 500±0.008mm |
| repeated positioning accuracy | 500±0.006mm |
| Z-weighting | nitrogen double cylinder balancing system |
| numerical control system | FANUC 0i-MF PLUS High-Speed/High-Precision Functions, Pre-interpolation Diamond-shaped Acceleration, Deceleration Support for Four-Axis Four-Linkage Functions |
| lube oil system | Active Lubrication System Braking on Demand with Distributed Oil Injection Can Monitor Oil Injection Status in Real Time |
| bleed pressure | 0.5-0.8 MPa |
| Approximate dimensions of the machine tool contour （length x width x height) | 7500mm*4200mm*3500mm |
| Machine tool weight | 26T |
Product Instruction:
The Gantry Machining Center 2518 is a large-scale CNC machine tool widely used in automotive, mold manufacturing, aerospace, hardware, and other fields. It offers versatile machining capabilities such as milling, boring, drilling, and tapping, making it suitable for medium to large-sized complex components. The numbers "2518" in its model generally indicate a worktable travel range or machining scope of approximately 2500 mm (X-axis) × 1800 mm (Y-axis), placing it in the medium-to-large gantry structure category. It is characterized by high rigidity, high precision, and robust cutting performance.
