Guide to choose CNC lathe machine1. Regarding the Machine Size, choosing between a compact or larger machine can impact your workspace and the size of the parts you can produce. For smaller workshops, a compact CNC lathe might be more advantageous.2. For Spindle Speed, higher spindle speeds can im

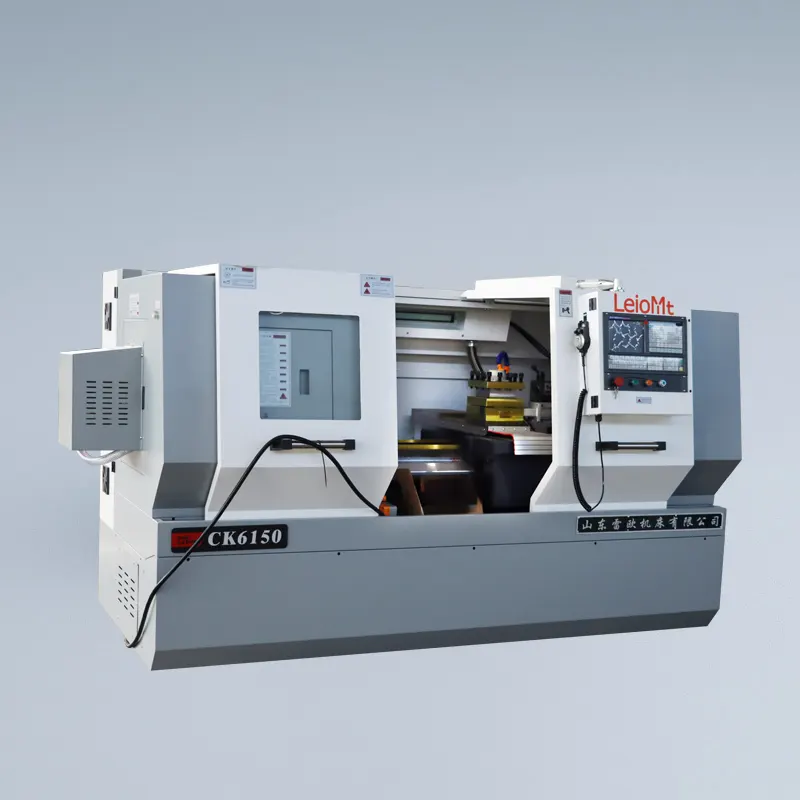

| SPECIFICATIONS | Units | CK6136 | CK6140 | CK6150 | CK6160 |
| Swing over bed | mm | 360 | 400 | 500 | 600 |
| Swing over cross slide | mm | 190 | 210 | 260 | 350 |
| Distance between centers | mm | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 |

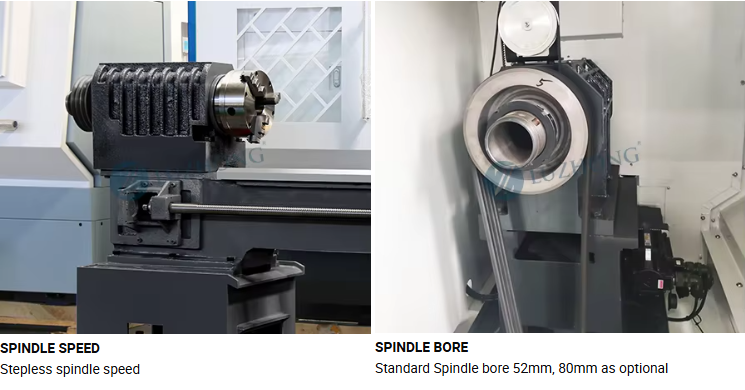

| Spindle bore | mm | 52(Optional 80) | 52(Optional 80) | 52(Optional 80) | 52(Optional 80) |
| Spindle bore taper | - | MT6 | MT6 | MT6 | MT6 |
| Spindle nose type | - | A2-6(A2-8) | A2-6(A2-8) | A2-6(A2-8) | A2-6(A2-8) |
| Spindle speed steps | rpm | Stepless | Stepless | Stepless | Stepless |
| Spindle speed range | 1800 | 1800 | 1800 | 1800 | |
| Turret/tool post | - | Electric 4 position | Electric 4 position | Electric 4 position | Electric 4 position |
| Tool size | mm | 20*20 | 20*20 | 25*25 | 25*25 |
| X axis travel | mm | 180 | 200 | 250 | 300 |
| Z axis travel | mm | 500/750/1250/1750 | 500/750/1250/1750 | 500/750/1250/1750 | 500/750/1250/1750 |
| X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | 4000 |
| Z axis rapid traverse | mm/min | 6000 | 6000 | 6000 | 6000 |
| Tailstock quill diameter | mm | 65 | 65 | 65 | 65 |
| Tailstock quill taper | - | MT4 | MT4 | MT5 | MT5 |
| Tailstock quill travel | mm | 140 | 140 | 140 | 140 |
| Main spindle motor | kw | 5.5 | 5.5 | 5.5 | 5.5 |
| Coolant pump motor | kw | 0.125 | 0.125 | 0.125 | 0.125 |
| Weight for 750 | kg | 1500 | 1550 | 1600 | 1700 |
| Weight for 1000 | kg | 1600 | 1650 | 1700 | 1800 |
| Weight for 1500 | kg | 1800 | 1850 | 1900 | 2000 |
| Weight for 2000 | kg | 2000 | 2050 | 2100 | 2200 |
| Dimension for 750 | mm | 2200*1600*1650 | 2200*1650*1700 | 2200*1700*1750 | 2200*1750*1800 |
| Dimension for 1000 | mm | 2500*1600*1650 | 2500*1650*1700 | 2500*1700*1750 | 2500*1750*1800 |
| Dimension for 1500 | mm | 3000*1600*1650 | 3000*1650*1700 | 3000*1700*1750 | 3000*1750*1800 |
| Dimension for 2000 | mm | 3500*1600*1650 | 3500*1650*1700 | 3500*1700*1750 | 3500*1750*1800 |
1. Regarding the Machine Size, choosing between a compact or larger machine can impact your workspace and the size of the parts you can produce. For smaller workshops, a compact CNC lathe might be more advantageous. 2. For Spindle Speed, higher spindle speeds can improve the efficiency of your machining process, especially for materials that require high-speed cutting. 3. Considering the Control System, opting for a user-friendly and advanced control system can significantly enhance the ease of operation and precision in your machining tasks. Look for machines with intuitive interfaces and robust software support.
4. Regarding Power and Torque, selecting a machine with higher power and torque can enhance the machining of tougher materials and improve overall efficiency. 5. For Tooling Options, having a variety of tool holders and automatic tool changers can increase versatility and reduce setup times, making your operations more flexible. 6. Considering Precision and Accuracy, machines with advanced precision control features, such as linear scales and high-resolution encoders, can ensure higher accuracy in your machining processes.
