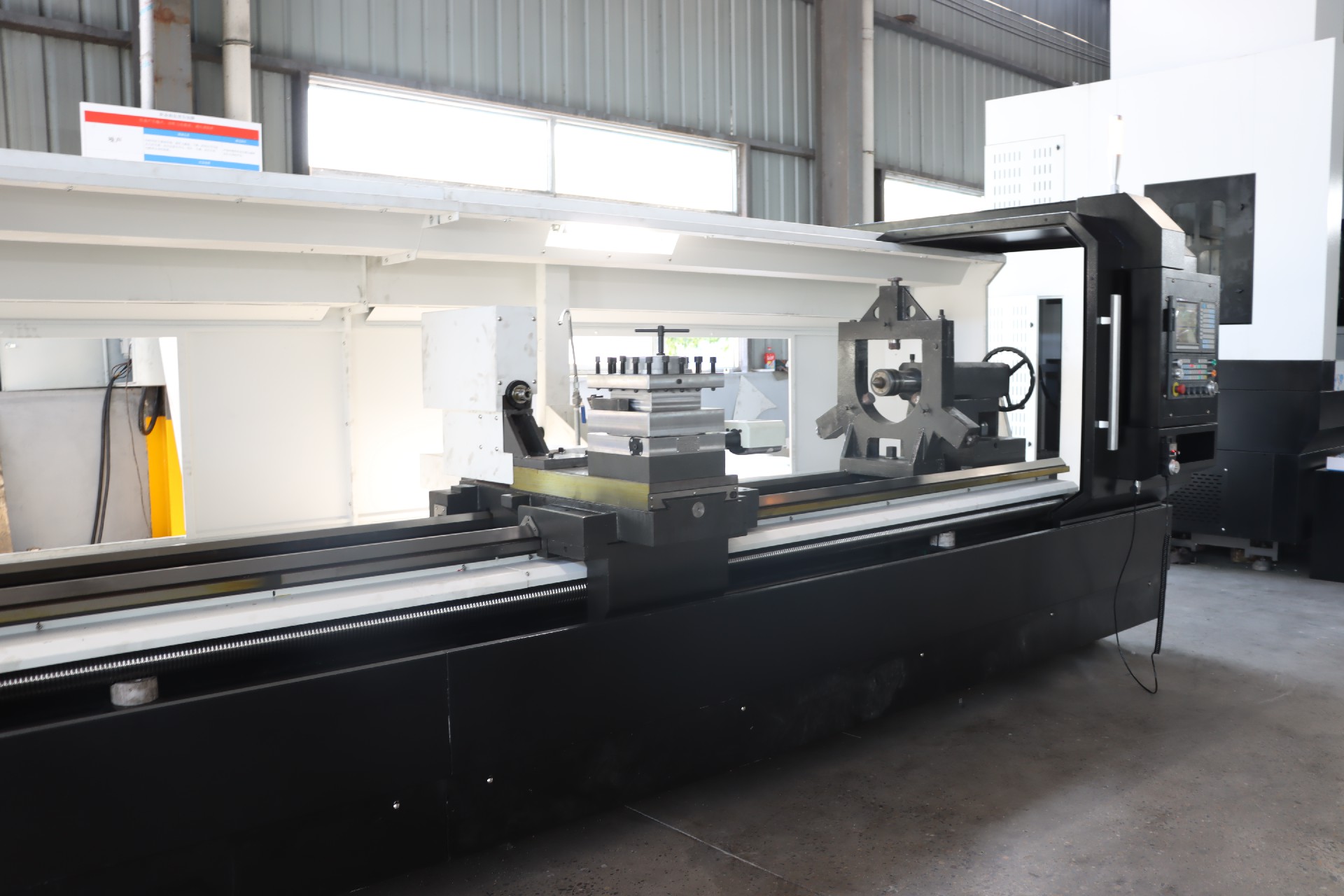

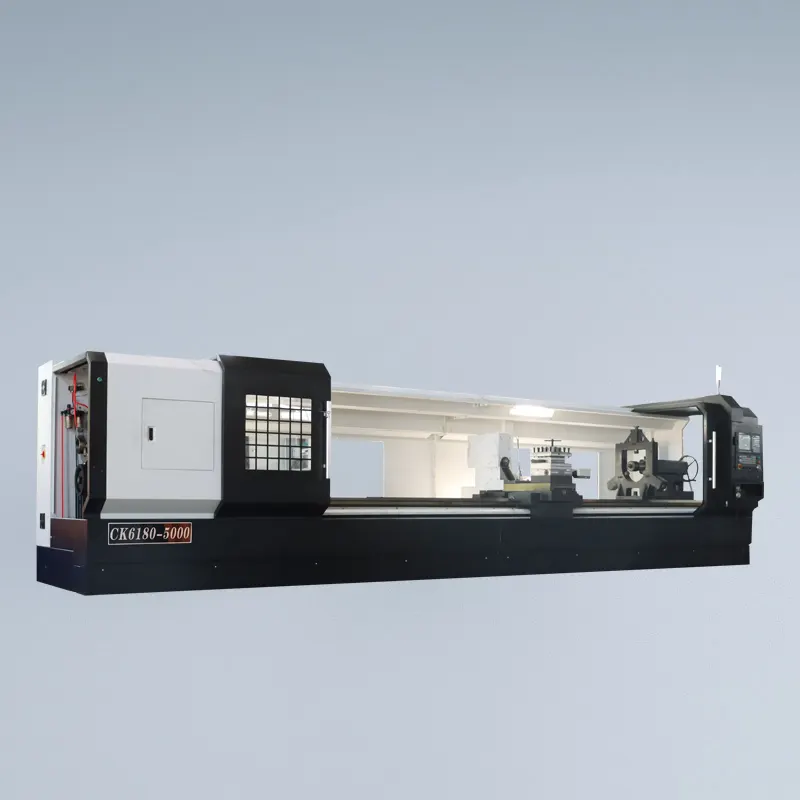

Heavy Duty Lathe Machine CK6180 Heavy Duty Lathe Machine

Heavy Duty Lathe Machine CK6180 Heavy Duty Lathe Machine

The main performance characteristicsGSK980 control systemManual chuck4 Station electric tool postManual tailstock


CNC Machine Main Specifcation

SPECIFICATIONS

Units

CK6180F

Manual                HYD.

CK61100F

Manual                  HYD.

Swing over bed

mm

800

1000

Swing over cross slide

mm

480

680

Distance between centers

mm

1000 - 10000

1000 - 10000

Guideway width

mm

600

600

Max. load capacity

T

4

4

Spindle bore

mm

105

105

Spindle bore taper

-

Metric φ120/MT6

Metric φ120/MT6

Spindle nose type

-

C11

C11

Spindle speed steps

-

VF. 3 steps

HYD. 4 steps

VF. 3 steps

HYD. 4 steps

Spindle speed range

rpm

20-800

17-800

20-800

17-800

Chuck

mm

φ400 3-jaw manual

φ400 3-jaw manual

Turret/tool post

-

Electric 4 position

Electric 4 position

Tool shank size

mm

40*40

40*40

X axis travel

mm

420

520

Z axis travel

mm

850 - 9850

850 - 9850

X axis rapid traverse

mm/min

4000

4000

Z axis rapid traverse

mm/min

6000

6000

Tailstock quill diameter

mm

φ120

φ120

Tailstock quill taper

-

MT6

MT6

Tailstock quill travel

mm

250

250

Main spindle motor

kw

15

15

Coolant pump motor

kw

0.25

0.25

Overall dimension(W*H)

mm

1950*1900

2100*2150

Overall dimension(L)

mm

3500 - 12500

3500 - 12500

Machine weight

T

5~~11

5.5 - 11.5


The main performance characteristics

GSK980 control system

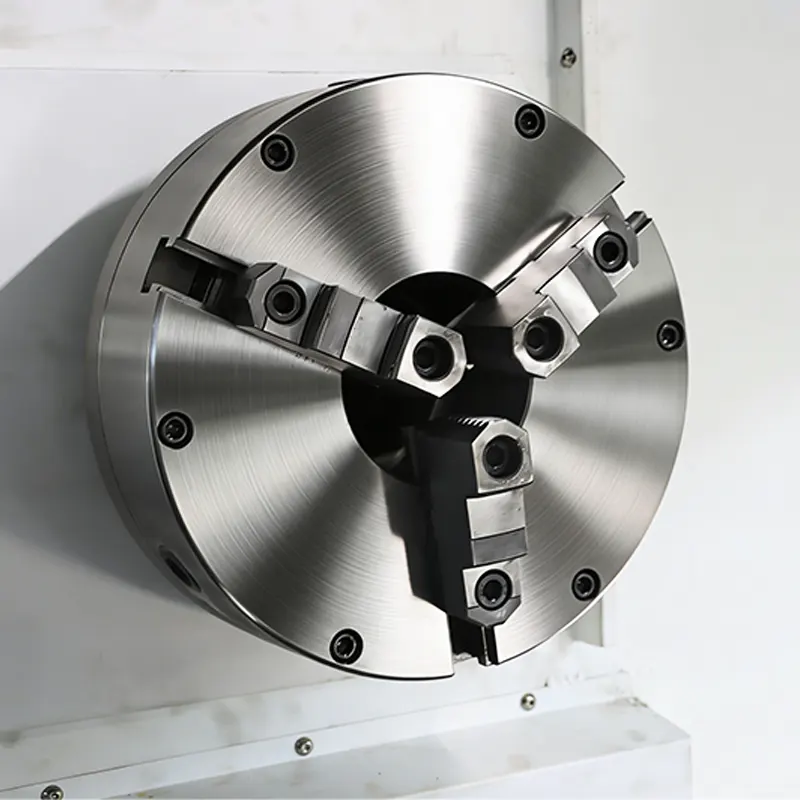

Manual chuck

4 Station electric tool post

Manual tailstock
