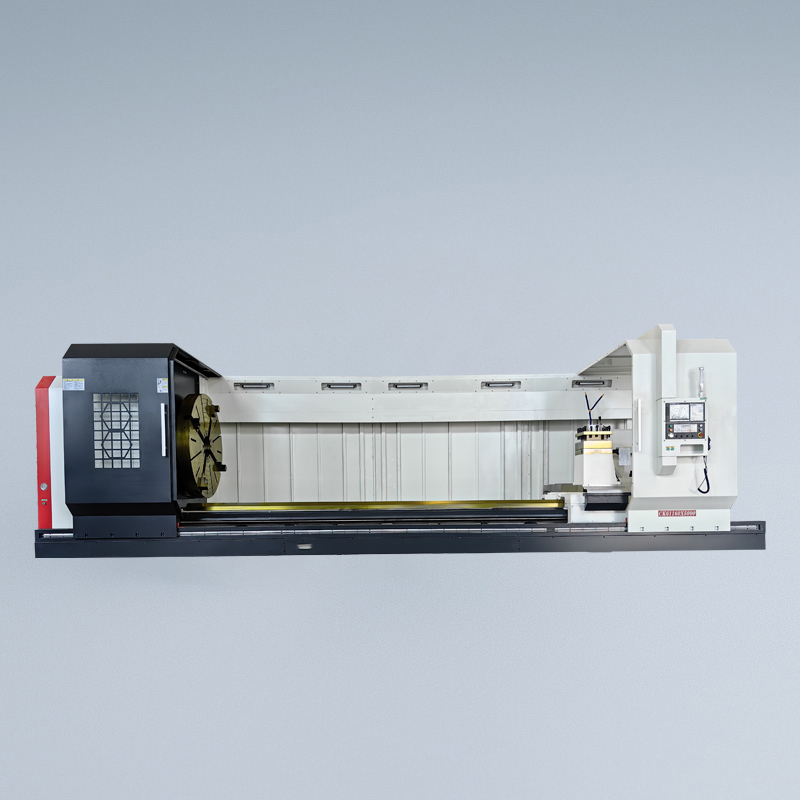

Large Cnc Lathe CK61160 Heavy Duty Cnc Turning Conventional Lathe Machine

Large Cnc Lathe CK61160 Heavy Duty Cnc Turning Conventional Lathe Machine

Product description: This machine is suitable to process the middle and large size work piece in steel,cast iron,non-ferrous metal material.with the feature of big power and high rigidity,this machine is applied to heavy-cut the inner circle,ex-circle,end surface and thread in both metric and Engli


SPECIFICATIONS

Units

CK61160

Swing over bed

mm

1600

Swing over cross slide

mm

1200

Distance between centers

mm

1500-10000

Guideway width

mm

755

Max. load capacity

T

6

Spindle bore

mm

130

Spindle bore taper

-

Metric φ140/MT6

Spindle nose type

-

A2-15

Spindle speed steps

-

VF. 4 steps

Spindle speed range

rpm

4-300

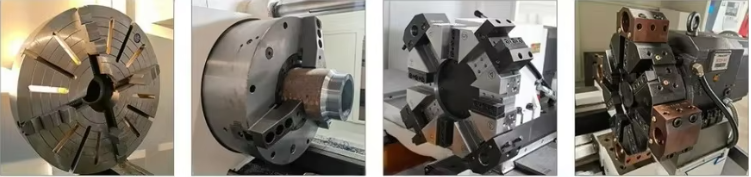

Chuck

mm

Φ1250 4-jaw manual

Turret/tool post

-

Electric 4 position

Tool size

mm

40x40

X axis travel

mm

720

Z axis travel

mm

1500-10000

X axis rapid traverse

mm/min

4000

Z axis rapid traverse

mm/min

6000

Tailstock quill diameter

mm

Φ160

Tailstock quill taper

-

MT6

Tailstock quill travel

mm

300

Main spindle motor

kw

22

Coolant pump motor

kw

0.25

Width x Height

mm

2350x2600

Length

mm

5000-14000

Net weight

T

13-22



Product description:

This machine is suitable to process the middle and large size work piece in steel,cast iron,non-ferrous metal material.with the feature of big power and high rigidity,this machine is applied to heavy-cut the inner circle,ex-circle,end surface and thread in both metric and English system,and could drill and bore the holes
