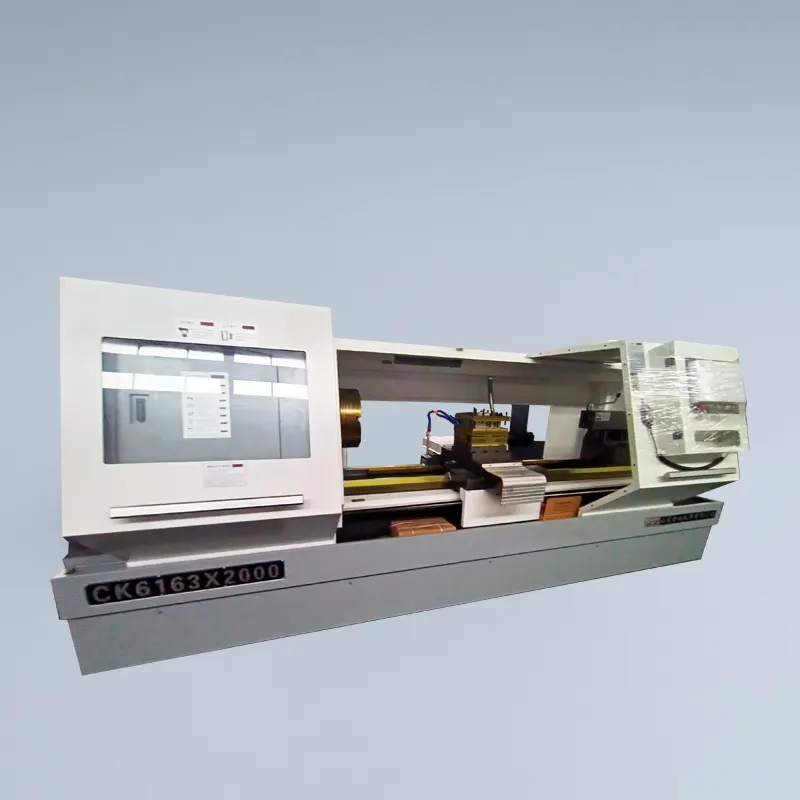

CK6163X1000/1500/2000/3000/4000 Horizontal CNC Flat Bed Lathe Machine

1.  The machine tool is a high-speed, high-precision, and highly reliable CNC machine tool. The main components such as the bed,bed body, and headstock box are cast from high-strength materials to ensure the long-term stability of the machine tool.
2.  The machine tool has high positioning accuracy and smooth chip removal, making it suitable for high-speed and high-precision machining.
3.  High-speed, high-precision, and high-rigidity spindle. The variable frequency spindle motor allows for higher spindle speeds.The spindle unit is assembled in a constant temperature chamber, undergoes continuous 72-hour temperature running-in, and then undergoes continuous 72-hour trial operation after being installed on the machine to ensure reliable high-speed and high-precision performance.

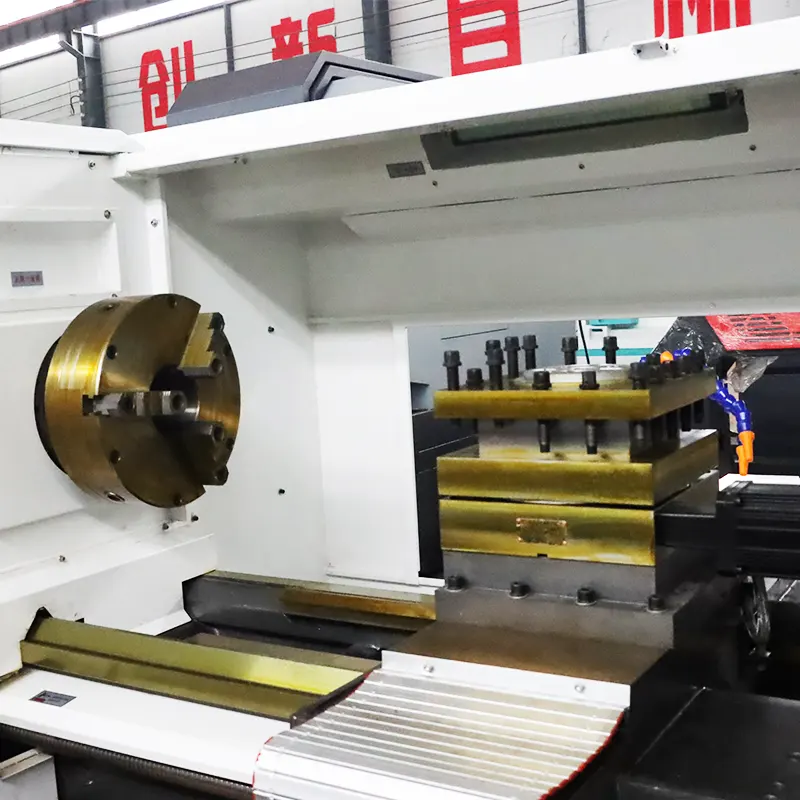

4.  Electric tool holder is selected.
5.  The X and Z-axis feeds adopt precision ball screws, and the servo motor is directly connected to the ball screw through a large torque, low inertia imported elastic coupling. The machine tool is equipped with an advanced centralized automatic
lubrication system, which provides timed and quantified intermittent lubrication, ensuring stable and reliable operation.
6.  The machine tool adopts a fully enclosed design for protection, with good ergonomics, unique appearance, reliable waterproof and chip protection, and easy maintenance.

FEATURES AT A GLANCE:

Name Specification Quantity Brand Origin
1.Control system GSK980TB3I (optional) 1 set Guangshu Guangzhou
2.Spindle 1 set Domestic Domestic
3.Ball screw bearing Harbin Domestic
4.Electric turret 1 set Hongda Domestic
5.Spindle motor Variable frequency main motor (11KW) 1 set Shanghai Domestic
6.Ball screw 1 set Nanjing Gongyi Domestic
7.Automatic lubrication device 1 set Domestic
