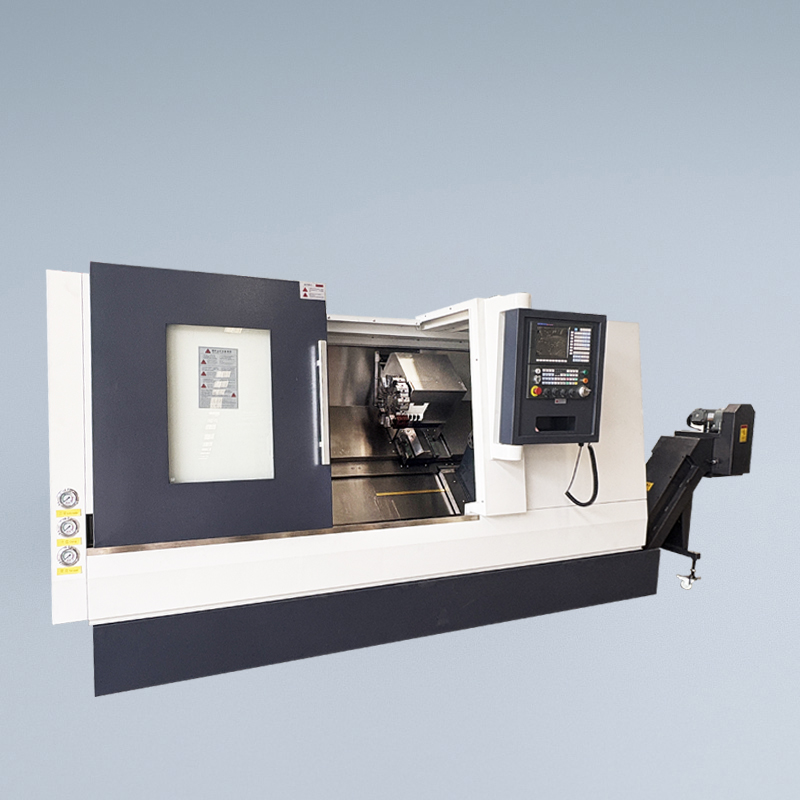

Product features:Highest accuracy Taiwan linear guide waysHigher speed spindle unit ,optional homemade spindleHigher rigidity cast ironIntegrated automatic lubricationOne-piece casting slant bed cnc lathe
| Product Paramenters | |||||
| specifications | unit | Tck50*500 | Tck50*750 | ||
| Maximum Swing Diameter on Bed | mm | 550 | 550 | ||
| Maximum Workpiece Length | mm | 550 | 750 | ||
| Maximum Machining Diameter | mm | 400 | 400 | ||
| Maximum Swing Diameter on Carriage | mm | 250 | 250 | ||
| Spindle End Type and Designation | A2-6 | A2-6 | |||
| Spindle Bore | mm | 65 | 65 | ||
| Maximum Through Bar Diameter | mm | 50 | 50 | ||
| Maximum Spindle Speed | r/min | 50～4000 | 50～4000 | ||
| Spindle Motor Power | kW | 11 | 11 | ||

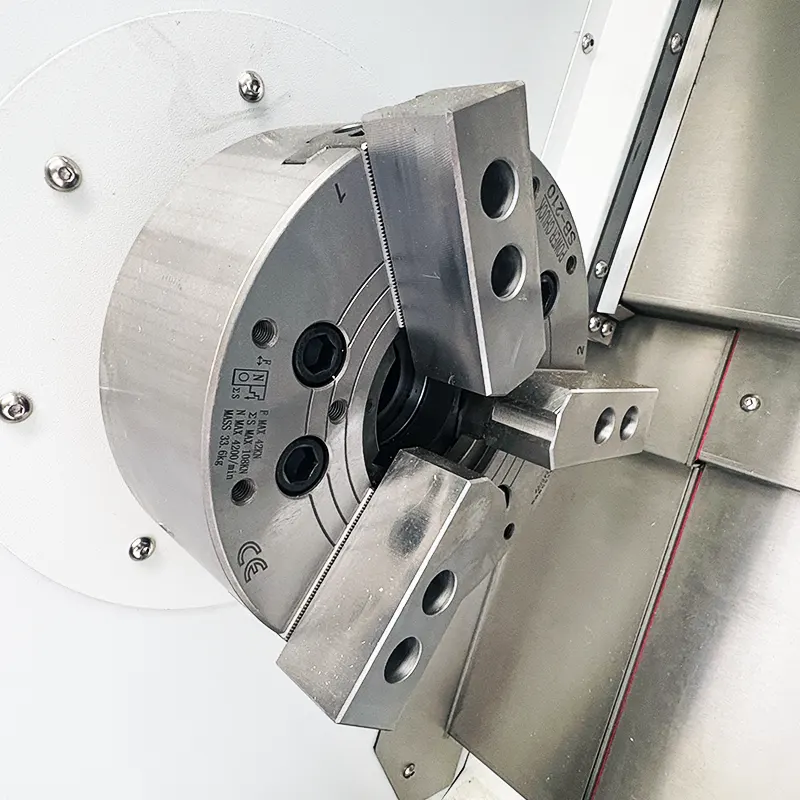

| Standard Chuck | Chuck Diameter | inch | 10² | 10² | |
| X-Axis Rapid Traverse | m/min | 24 | 24 | ||
| Z-Axis Rapid Traverse | m/min | 24 | 24 | ||
| X-Axis Travel | mm | 240 | 240 | ||
| Z-Axis Travel | mm | 550 | 550 | ||
| Standard Tool Holder Configuration | Horizontal Servo 12-Station | Horizontal Servo 12-Station | |||
| Tailstock Body Travel | mm | 350 | 350 | ||
| Tailstock Taper Hole Angle | 4# | 4# | |||
| Tailstock Sleeve Travel | mm | 120 | 120 | ||
| Tool Dimensions | Outer Diameter Cutting Tool | mm | 25×25 | 25×25 | |
| Boring Bar Diameter | mm | φ32/ | φ32/ | ||
| Can the Tool Plate Select Tools Locally? | Yes | Yes | |||
| Machine Weight | kg | 3500 | 3500 | ||
| Overall Dimensions | mm | 2300×1700×1760 | 2300×1700×1760 | ||
Product features:
Highest accuracy Taiwan linear guide ways
Higher speed spindle unit ,optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
