Typical ApplicationsPrecision Shafts & RollsFlanges & Bearing HousingsThreaded Components & CouplingsHydraulic Cylinders & Piston RodsGeneral Repair & PrototypingTheCK8000 Series Horizontal CNC Lathecombinesrobust construction,operational simplicity, and&n
| Project | UNit | Typical specifications/parameters |
| maximum rotary diameter of bed | mm | Φ800 - Φ850 |
| maximum turning diameter of skateboard | mm | Φ600 - Φ650 |
| maximum length of workpiece | mm | 1000 / 1500 / 2000 / 3000 (Multiple specifications available) |
| maximum turning length | mm | Customize by workpiece length |
| diameter of spindle through-hole | mm | Φ105 - Φ130 |
| type of spindle head | - | A2-11 / A2-15 (Depends on the device model) |
| range of spindle speeds | rpm | 50 - 2000 / 50 - 2500 (continuously variable speed control) |
| 28 | kW | 15 - 22 (AC servo main motor) |
| Maximum X-axis (horizontal) stroke | mm | 400 - 450 |
| Maximum X-axis (longitudinal) stroke | mm | determined by turning length |
| X/Z axis rapid movement speed | m/min | 8 - 12 / 10 - 15 |

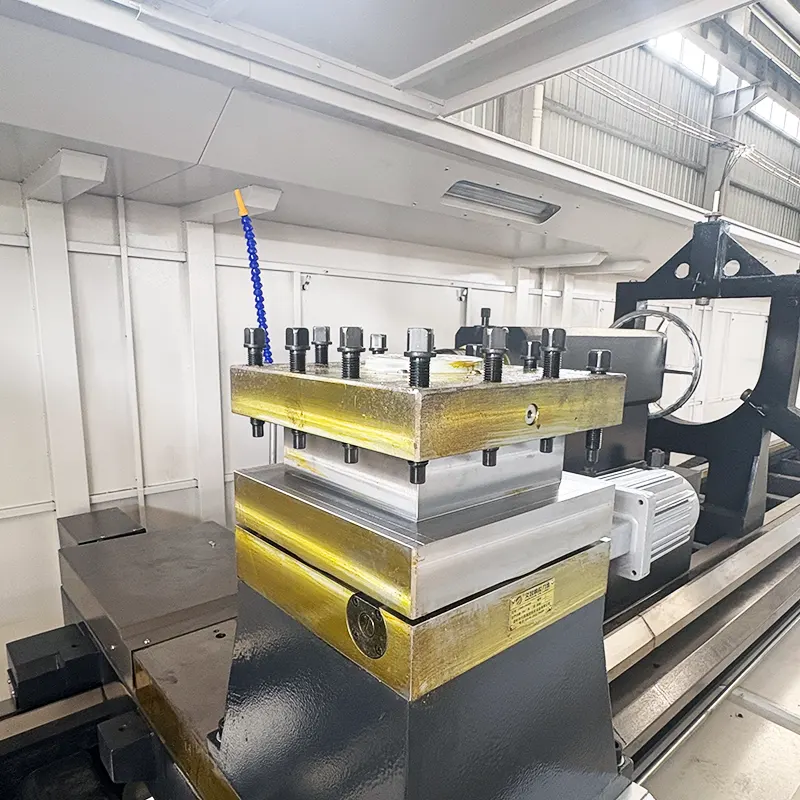

| form of tool holder | - | vertical/horizontal electric knife holder / knife arrangement holder |
| number of teeth | 8 / 12 / | |
| cross section size of rod | mm | 25×25 / 32×32 |
| X/Z axis positioning accuracy | mm | ≤ 0.016 / ≤ 0.025 (According to GB standards) |
| X/Z axis repeatability | mm | ≤ 0.007 / ≤ 0.010 (According to GB standards) |
| collar diameter of tailstock | mm | Φ120 - Φ150 |
| collar diameter of tailstock | mm | 200 - 250 |
| conical hole in tailstock sleeve | - | MT5 / MT6 |
| standard layout | - | 广数GSK / 发那科FANUC / 西门子SINUMERIK 等主流系统可选 |
| Machine tool dimensions (length × width × height) | m | 3.5×2.0×2.0 (Taking the Type 2000 as an example, the specific changes with length) |
| net weight of machine tool | kg | 5000 - 9000 (length-dependent variation) |
Typical Applications
Precision Shafts & Rolls
Flanges & Bearing Housings
Threaded Components & Couplings
Hydraulic Cylinders & Piston Rods
General Repair & Prototyping

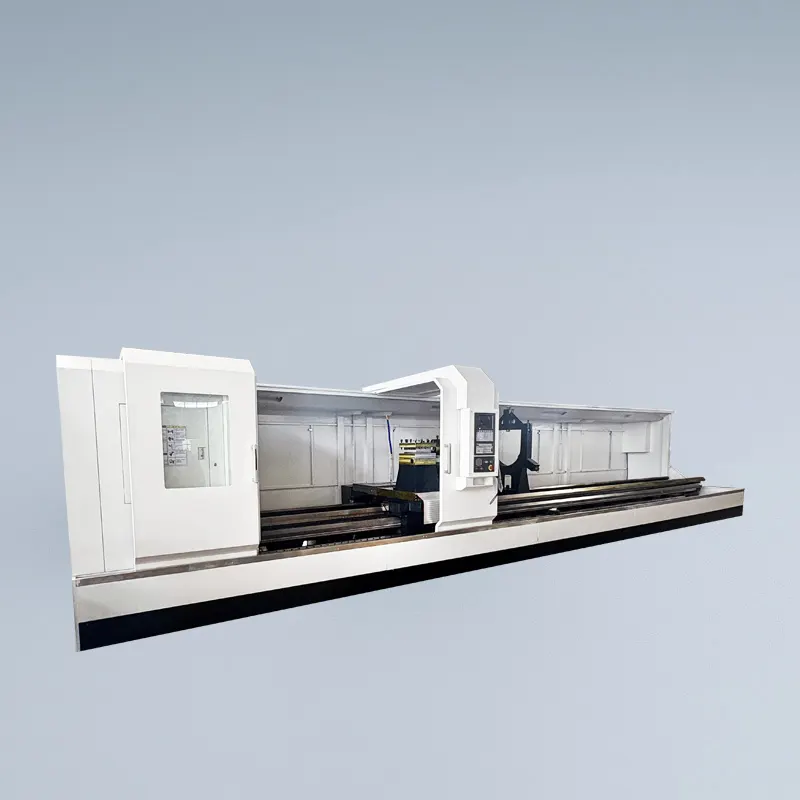

The CK8000 Series Horizontal CNC Lathe combines robust construction, operational simplicity, and cost-effectiveness to meet diverse turning needs. Its balanced design ensures accuracy, durability, and ease of maintenance, making it a practical asset for workshops aiming to enhance productivity and part quality.
