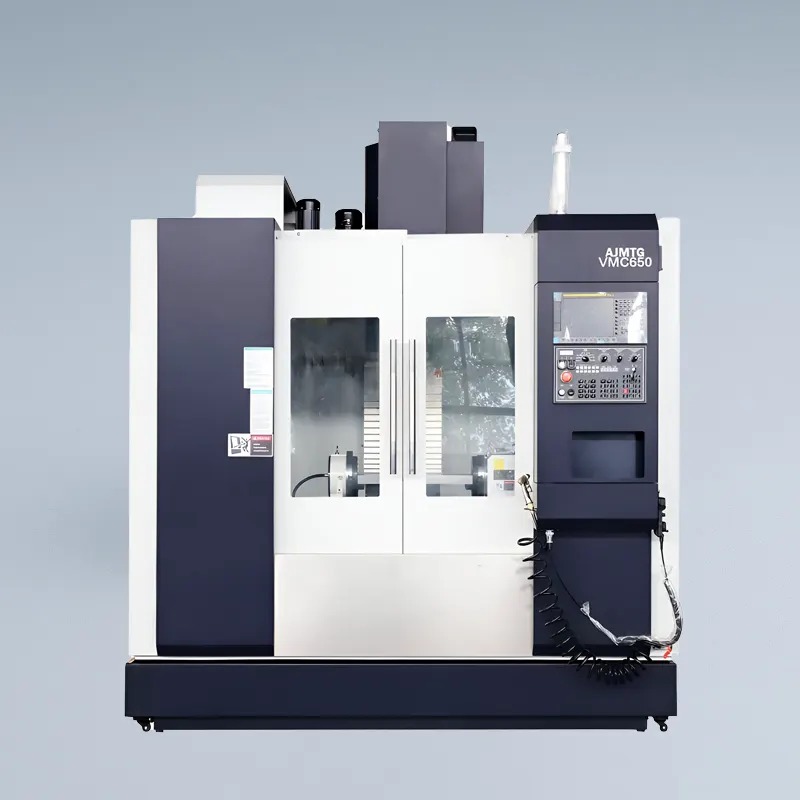

VMC650 Vertical CNC Machining Center-High Precision Single Spindle BT40 Automatic Tool Change

VMC650 Vertical CNC Machining Center-High Precision Single Spindle BT40 Automatic Tool Change

Shandong Leiou Machine Tool Co., Ltd. specializes in CNC lathes, inclined CNC lathes, vertical CNC lathes, turning milling composite, and machining centers


Technical Specifications


VMC650

The red X-axis travel

mm

650

Y-axis travel

mm

450

Z-axis travel

mm

500

The distance from the spindle nose to the worktable surface

mm

100-600

Table size

mm

400X900

T-slot

mm

3

Maximum load of workbench

kg

300

Spindle speed

rpm

10000

Spindle horse power

kw

5.5

Taper of spindle inner hole


BT40

XYZ fast move

m/min

24

Tool storage capacity

pcs

24

Machine weight

kg

4500
